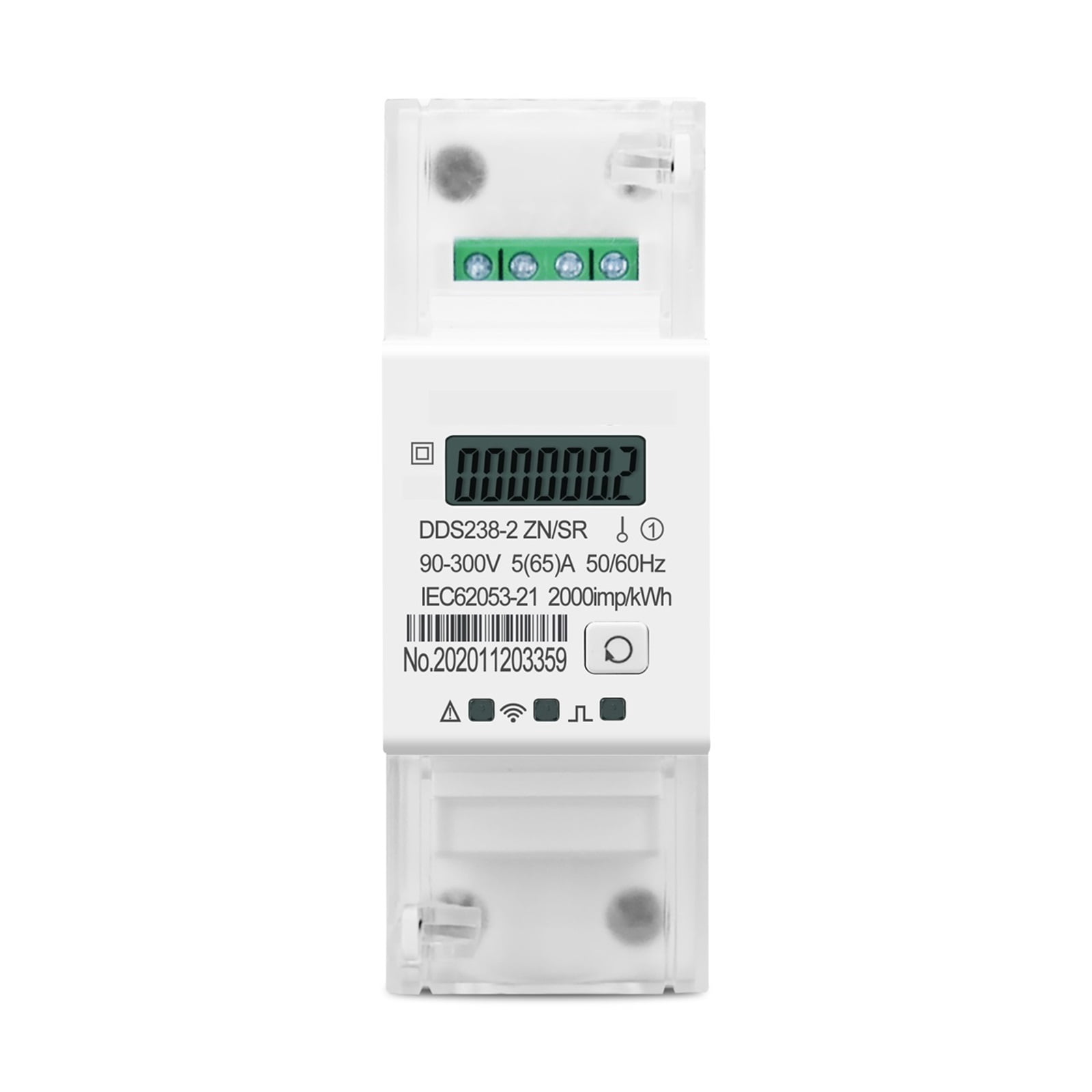

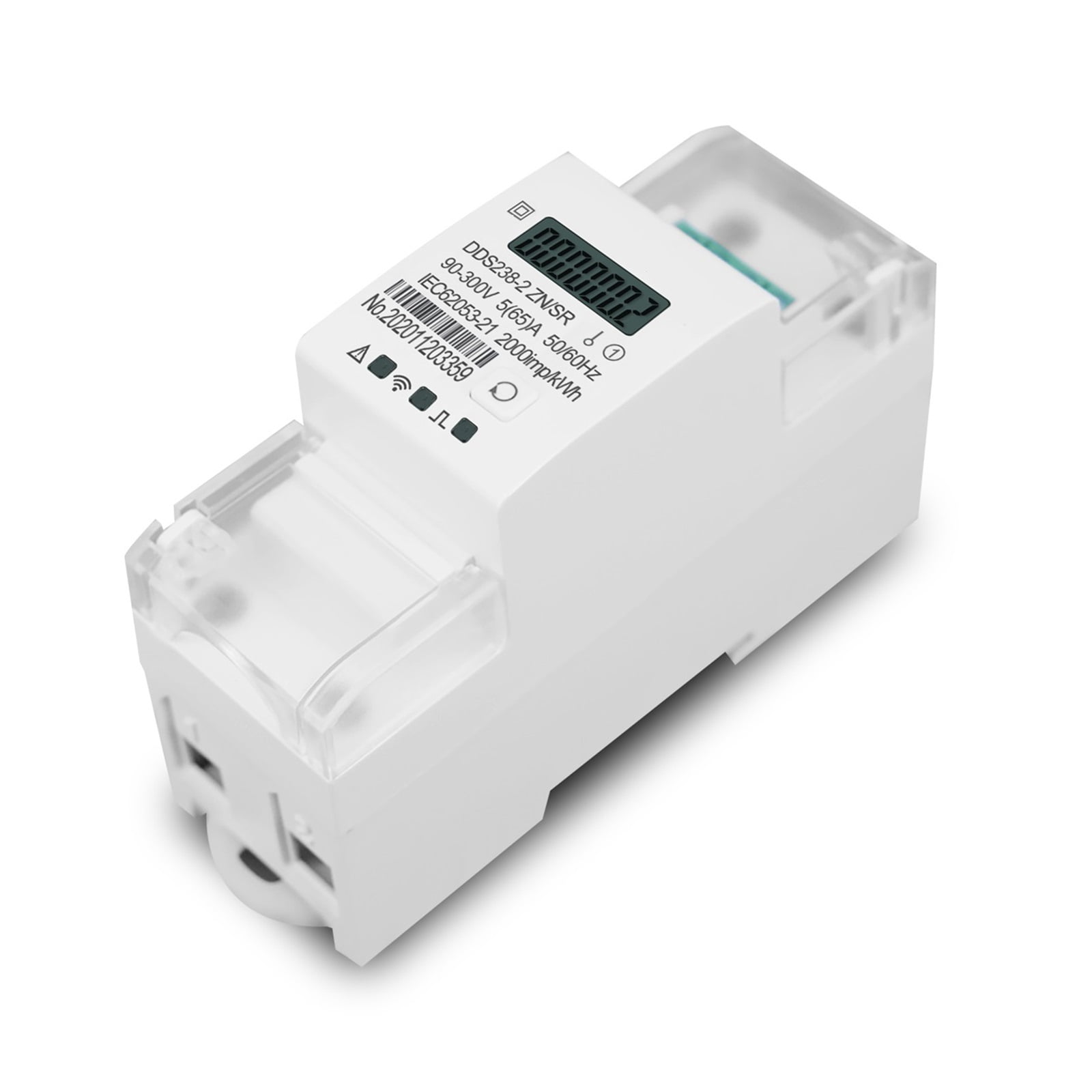

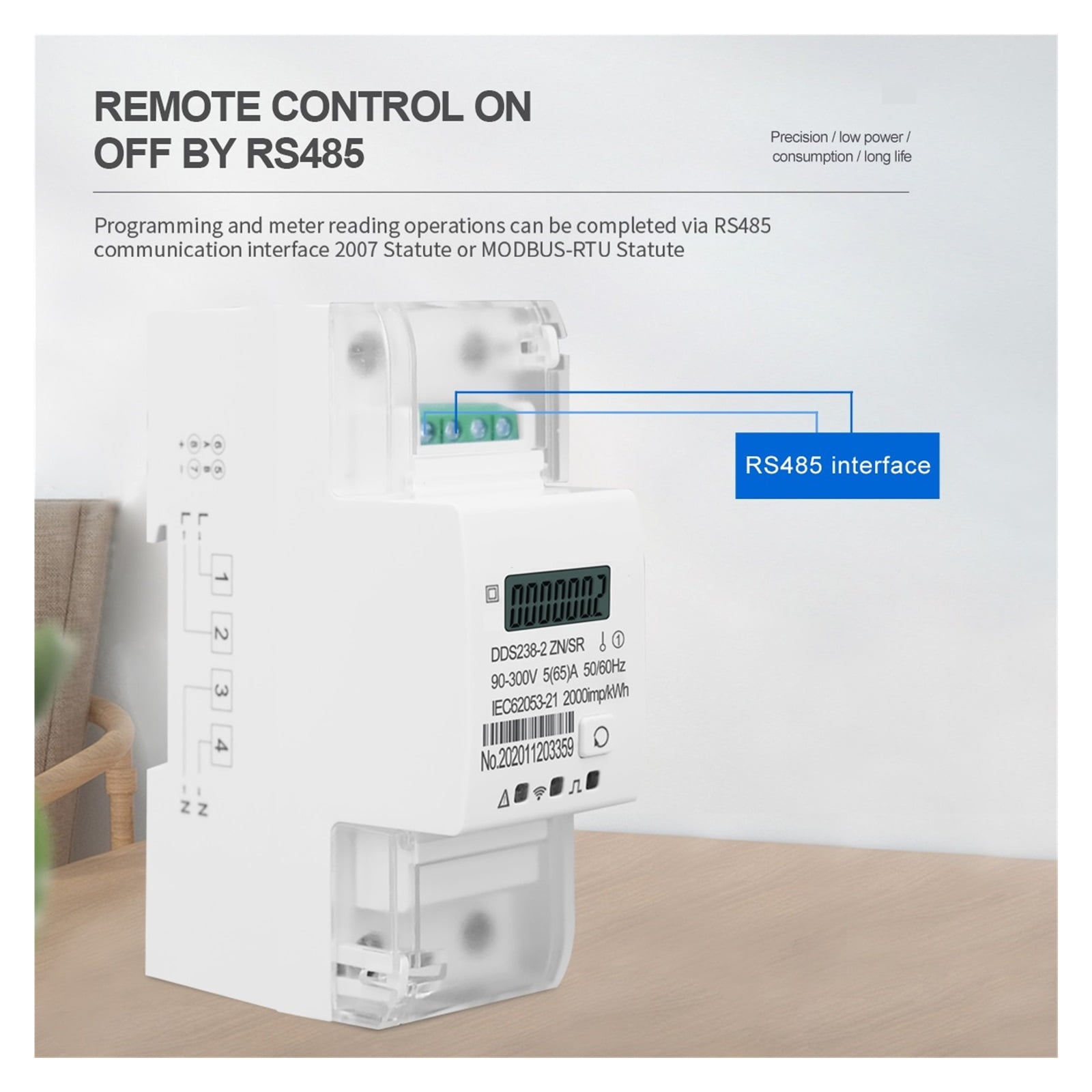

Single Phase Remote Control ON/OFF 65A Multi Function Din Rail Energy Meter 90-300V Kwh Watt Hour Meter Power Consumption Monitor ,Overload Protection
Product details
| Management number | 238169935 | Release Date | 2026/07/11 | List Price | $23.64 | Model Number | 238169935 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
<p>Technical specification</p><p></p><p>Start current: 20mA</p><p>MAx current: 65A</p><p>Comsumption<2w/8VA</p><p>Isolation and withstand voltage: 450V</p><p>Display: LCD 6+1 digits</p><p>Interface OPEN COLLECTOR OUTPUT(S0) 18-27V 27mA</p><p>Impulses: 2000imp/kWh (0.5Wh/Imp)-65A</p><p>Working temperature: -25 to 70°c</p><p>PINK: Normal operation Flashing rate proportional to load</p><p>Installation: Din rail 35mm</p><p>Related Products:home energy monitor,energy monitor,smart home energy monitor,home power monitor,home energy monitoring system,electricity usage monitor smart,whole home energy monitor,electricity monitor,energy monitoring system,smart energy monitor,sense energy monitor,power monitor,energy monitoring,energy meter,whole house power monitor,power consumption monitor,power usage monitor</p>
- Real-time display of current, voltage, power, power factor, etc.
- The data is clear, at a glance, with luminous function

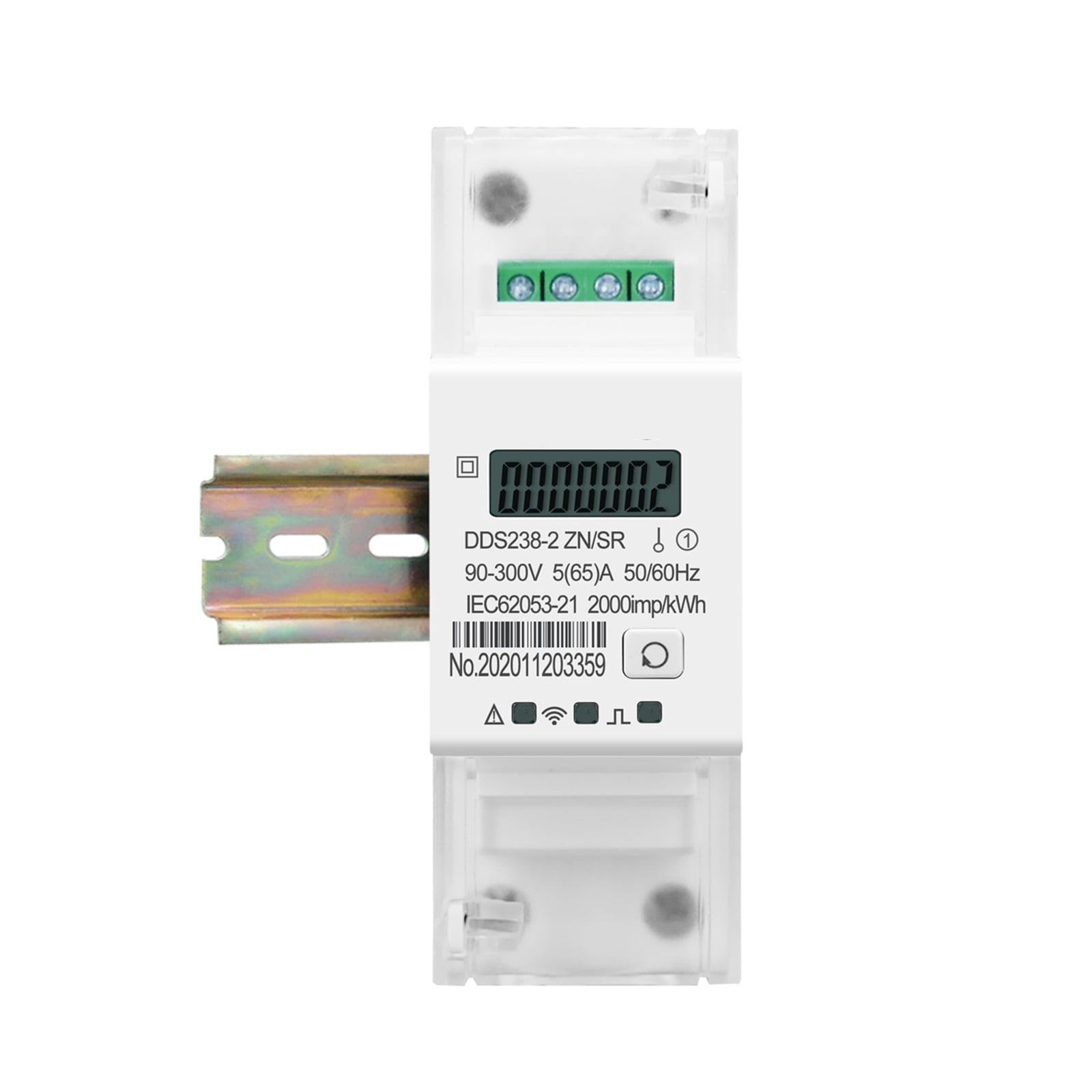

- The width of the meter is only 36mm, 35mm standard rail installation
- Built-in chip, reliable measurement, small error

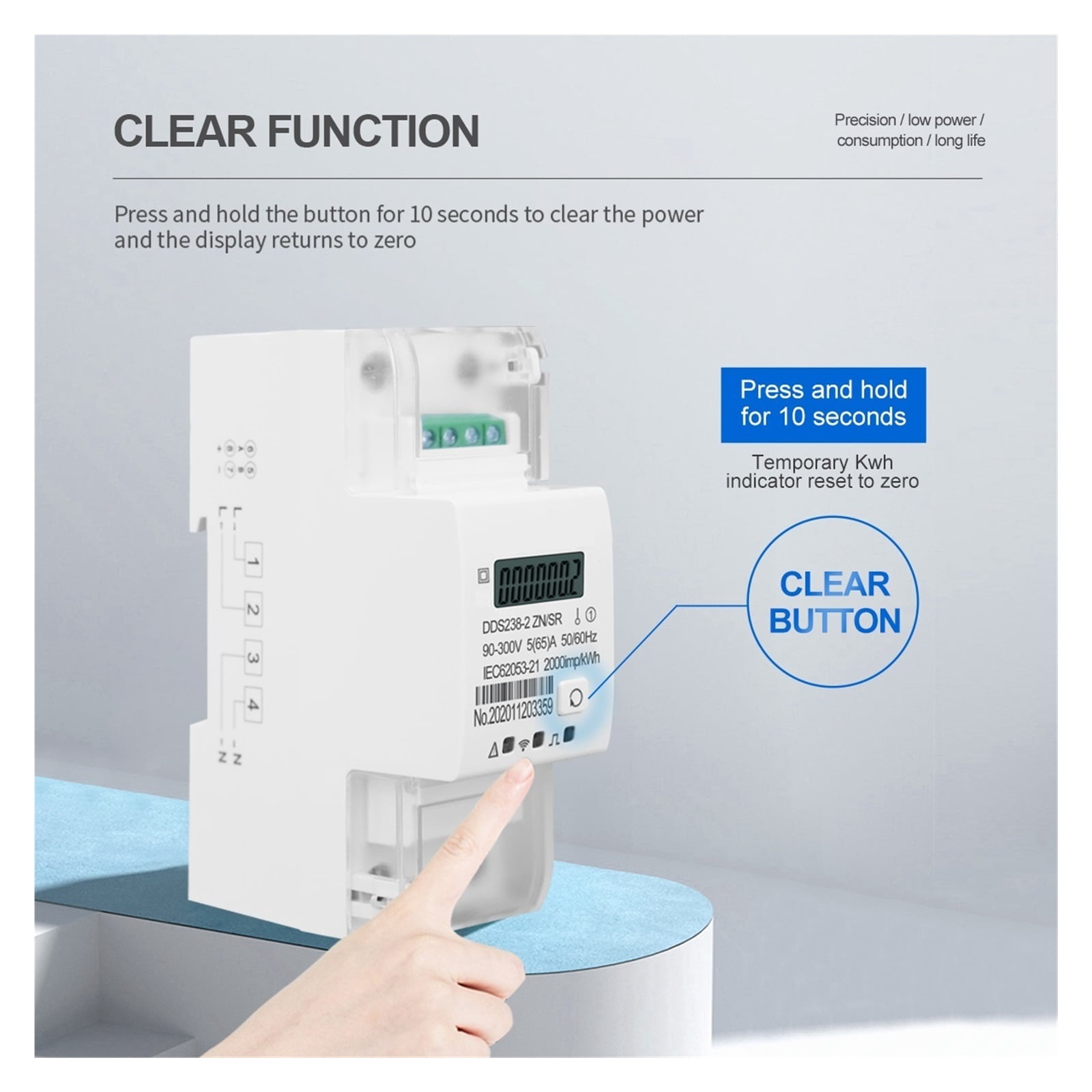

- Press and hold the button for 10 seconds to clear the power and the display returns to zero
| Watts | 2 Watts |
|---|---|
| Brand | Dag |
| Pieces | 1 |
| Has written warranty | No |
| Weight | 0.35 oz |
